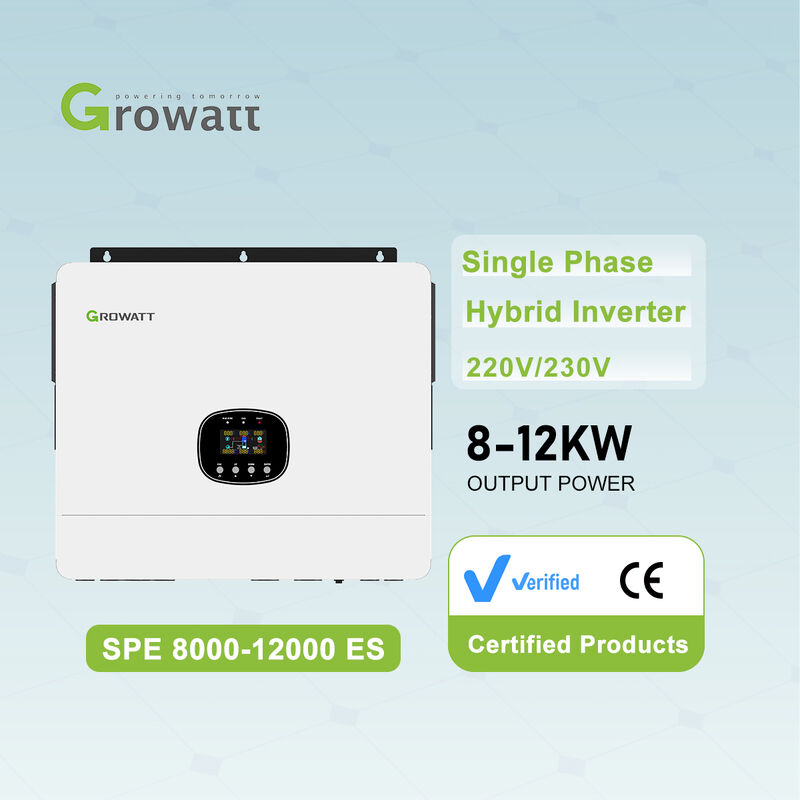

| Brand Name: | Growatt |
| Model Number: | SPE 8000-12000 ES |
| MOQ: | 1 piece |
| Price: | $1,495-1,526 / piece |
|
DATASHEET
|
SPE 8000 ES
|
SPE 10000 ES
|
SPE 12000 ES
|
|||
|
Input data (DC)
|
||||||
|
Max. recommended PV power
(for module STC) |
10000W
|
12500W
|
15000W
|
|||
|
Max. DC voltage
|
550V
|
|||||
|
Start voltage
|
120V
|
|||||
|
MPP voltage range
|
60V-480V
|
|||||
|
No. of MPP trackers
|
2
|
|||||
|
No. of PV strings per MPP tracker
|
1
|
|||||
|
Max. input current per MPP tracker
|
27A
|
|||||
|
Output data (AC)
|
||||||
|
AC nominal power
|
8000W
|
10000W
|
12000W
|
|||
|
Max. AC apparent power
|
8000VA
|
10000VA
|
12000VA
|
|||
|
Nominal AC voltage
|
230V
|
|||||
|
AC grid frequency
|
50/60Hz
|
|||||
|
Output current
|
34.8A
|
43.5A
|
52.2A
|
|||
|
Adjustable power factor
|
0.8leading…0.8lagging
|
|||||
|
THDi
|
< 5%
|
|||||
|
Max. conversion efficiency (PV/AC)
|
96.5%
|
|||||
|
European efficiency @ vnominal (PV/AC)
|
95.5%
|
|||||
|
Battery data (DC)
|
||||||
|
Nominal DC voltage
|
48V
|
|||||
|
Max charging and discharging current
|
190A/200A
|
220A/240A
|
250A/280A
|
|||
|
Type of battery
|
Lithium/Lead-acid
|
|||||
|
Backup power (AC)
|
||||||
|
AC nominal output power
|
8000W
|
10000W
|
12000W
|
|||
|
Nominal AC output voltage
|
230V
|
|||||
|
Nominal AC output frequency
|
50/60Hz
|
|||||
|
Switch time
|
<20ms@Single <30ms@Paralle
|
|||||
|
Efficiency
|
||||||
|
Peak. efficiency
|
96.5%
|
|||||
|
European efficiency
|
95.5%
|
|||||
|
General data
|
||||||
|
Dimensions (W / H / D)
|
550/465/150mm
|
|||||
|
Weight
|
21.5kg
|
|||||
|
Operating temperature range
|
–10°C ... +50°C
|
|||||
|
Noise emission (typical)
|
<75dB
|
|||||
|
Self-consumption
|
< 75W
|
|||||
|
Topology
|
Tranformerless
|
|||||
|
Cooling
|
DC fan
|
|||||
|
Protection degree
|
IP20
|
|||||
|
Relative humidity
|
5%~95% non-condensing
|
|||||
|
Altitude
|
<2000m
|
|||||
|
Communication
|
WiFi/4G
|
|||||
|
CE, NRS097
|
||||||
