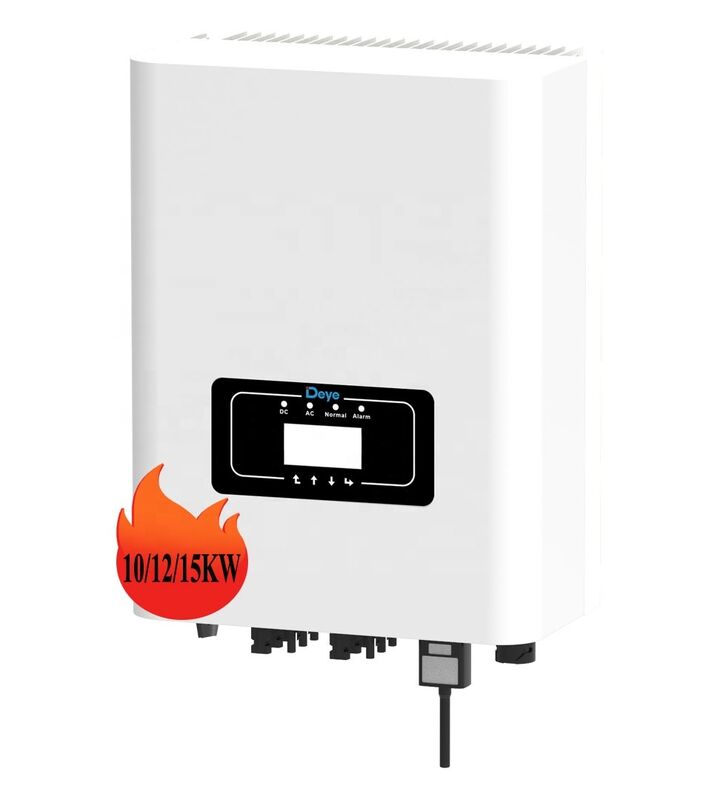

| Brand Name: | Deye |
| Model Number: | SUN-10/12/15K -G04-LV |
| MOQ: | 1 piece |
| Price: | $360-400 / piece |
Model | SUN-10K -G04-LV | SUN-12K -G04-LV | SUN-15K -G04-LV | ||
Input Side | |||||
Max. DC Input Power (kW) | 13 | 15.6 | 19.5 | ||
Max. DC Input Voltage (V) | 800 | ||||
Start-up DC Input Voltage (V) | 250 | ||||
MPPT Operating Range (V) | 200-700 | ||||
Max. DC Input Current (A) | 32+32 | 40+40+40+40 | |||
Max. Short Circuit Current (A) | 48+48 | ||||
No.of MPP Trackers | 2 | 4 | |||
No.of Strings per MPP Tracker | 2+2 | 3+3+3+3 | |||
Output Side | |||||
Rated Output Power (kW) | 10 | 12 | 15 | ||
Max. Active Power (kW) | 10 | 12 | 15 | ||
Nominal Output Voltage / Range (V) | 3L/N/PE 133V/230V | ||||
Rated Grid Frequency (Hz) | 50Hz/45Hz-55Hz | ||||
Operating Phase | Three Phase | ||||
Rated AC Grid Output Current (A) | 25.1 | 30.1 | 37.6 | ||
Max. AC Output Current (A) | 25.1 | 30.1 | 37.6 | ||
Output Power Factor | 0.8 leading to 0.8 lagging | ||||
Grid Current THD | <3% | ||||
DC Injection Current (mA) | <0.5% | ||||
Efficiency | |||||
Max. Efficiency | 98.6% | ||||
Euro Efficiency | 98% | ||||
MPPT Efficiency | >99% | ||||
Protection | |||||
DC Reverse-Polarity Protection | Yes | ||||
AC Short Circuit Protection | Yes | ||||
AC Output Overcurrent Protection | Yes | ||||
Output Overvoltage Protection | Yes | ||||
Insulation Resistance Protection | Yes | ||||
Ground Fault Monitoring | Yes | ||||
Anti-islanding Protection | Yes | ||||
Temperature Protection | Yes | ||||
Integrated DC Switch | Yes | ||||
Remote Software Upload | Yes | ||||
Remote Change of Operating Parameters | Yes | ||||
Surge Protection | DC Type II / AC Type II | ||||
General Data | |||||
Cabinet Size (WxHxD mm) | 362×577×215 (Excluding Connectors and Brackets) | ||||
Weight (kg | 23 | ||||
Topology | Transformerless | ||||
Internal Consumption | <1W (Night) | ||||
Running Temperature | -25-65℃, >45℃ Derating | ||||
Ingress Protection | IP65 | ||||
Noise Emission (Typical) | ≤40 dB | ||||
Cooling Concept | Smart Cooling | ||||
Permissible Altitude (m) | 2000 | ||||
Warranty | 5 Years | ||||
Grid Connection Standard | NBR 16149, NBR 16150, EN 50549, RD 140 | ||||
Operating Surroundings Humidity | 0-100% | ||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||
Features | |||||
Display | LCD1602 | ||||
Interface | RS485/RS232/Wifi/LAN | ||||
