| Brand Name: | Deye |

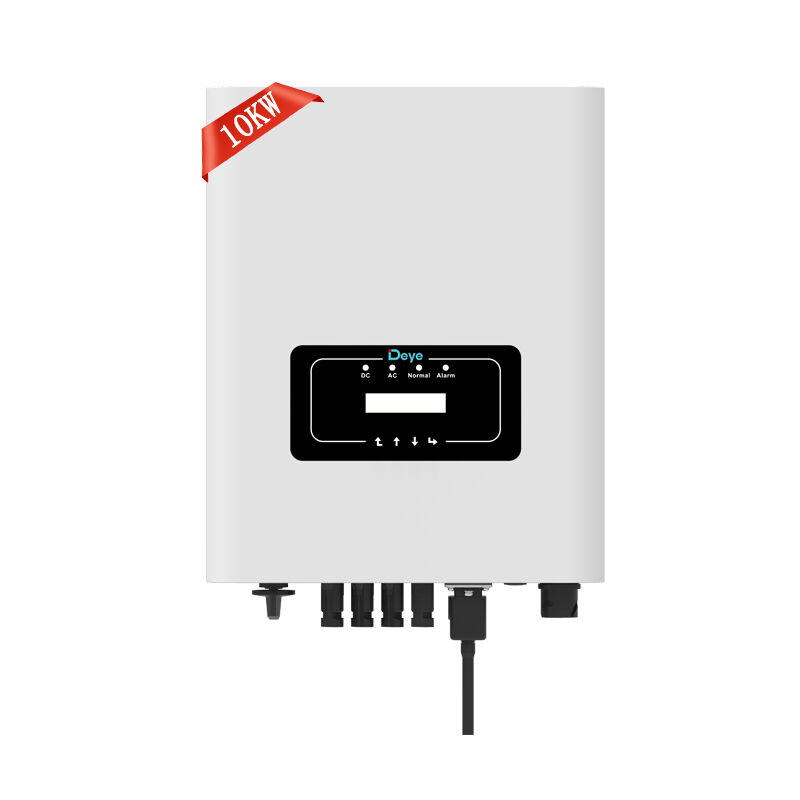

| Model Number: | SUN-10K-G |
| MOQ: | 1 piece |
| Price: | $640-688 / piece |
Model | SUN-10K-G |
Input Side | |
Max.DCInput Power(kW) | 13 |
Max.DC Input Voltage (V) | 550 |
Start-up DC Input Voltage(V) | 80 |
MPPT Operating Range(V) | 70-500 |
Max.DC Input Current(A) | 26+26 |
Max. Short Circuit Current(A) | 39+39 |
No.of MPP Trackers | 2 |
No.of Strings per MPPT Tracker | 2+2 |
Output Side | |
Rated Output Power(kW) | 10 |
Max.Active Power(kW) | 11 |
Nominal Output Voltage/Range(V) | L/N/PE 220/230V (Optional) |
Rated Grid Frequency(Hz) | 50 / 60 (Optional) |
Operating Phase | Single Phase |
Rated AC Grid Output Current(A) | 45.5/43.5 |
Max.AC Output Current(A) | 50/47.8 |
Output Power Factor | 0.8 leading to 0.8 lagging |
Grid Current THD | <3% |
DC Injection Current(mA) | <0.5% |
Grid Frequency Range | 45~55 or 55~65 (Optional) |
Efficiency | |
Max.Efficiency | 97.7% |
Euro Efficiency | 97.5% |
MPPT Efficiency | >99% |
Protection | |
DC Reverse-Polarity Protection | Yes |
ACShort Circuit Protection | Yes |
ACOutput Overcurrent Protection | Yes |
Output Overvoltage Protection | Yes |
Insulation Resistance Protection | Yes |
Ground Fault Monitoring | Yes |
Anti-islanding Protection | Yes |
Temperature Protection | Yes |
Integrated DCSwitch | Yes |
Remote Software Upload | Yes |
Remote Change of Operating Parameters | Yes |
Surge Protection | DC Type II / AC Type II |
General Data | |
Cabinet Size(WxHxDmm) | 330×410×198.5 (Excluding Connectors and Brackets) |
Weight(kg) | 15.3 |
Topology | Transformerless |
Intermal Consumption | <1W (Night) |
Running Temperature | -25-65℃, >45℃ Derating |
Ingress Protection | IP65 |
Noise Emission (Typical) | ≤35 dB |
Cooling Concept | Free Cooling |
Permissible Altitude(m) | 2000 |
Warranty | 5 Years |
Grid Connection Standard | IEC 62116, AS 4777.2 |
Operating Surroundings Humidity 0-100% | 0-100% |
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Features | |
DC Connection | MC-4 Mateable |
AC Connection | IP65 Rated Plug |
Display | LCD1602 |
Interface | RS485/RS232/Wifi/LAN |
