| Brand Name: | Growatt, Growatt |
| Model Number: | spf 6000es plus, spf 6000es plus |
| MOQ: | 5 pieces |
| Price: | $355-400 / piece |

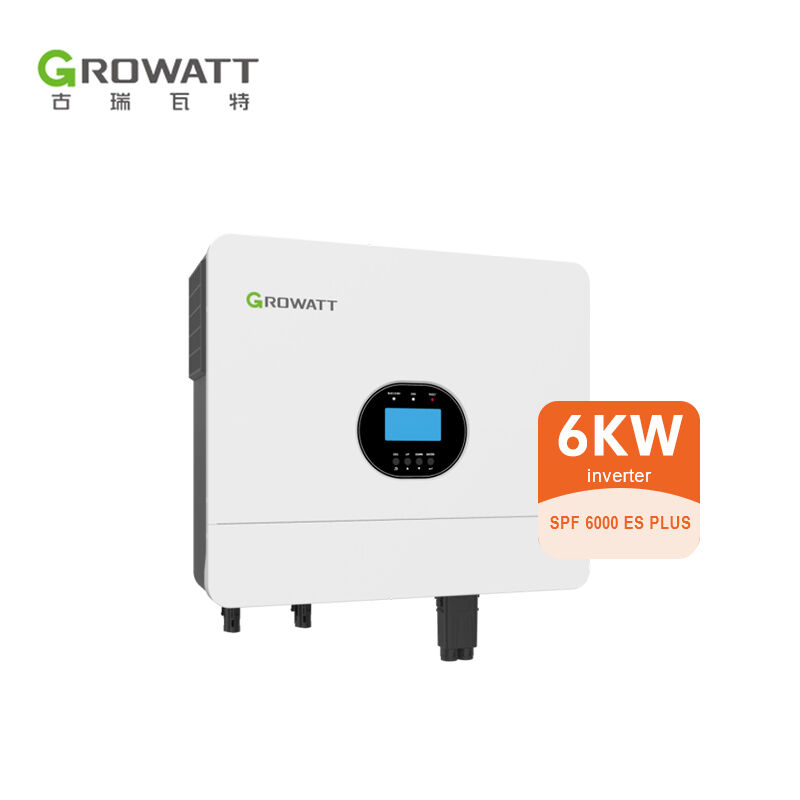

Datasheet | SPF 6000 ES Plus | |
Battery Voltage | 48VDC | |
Battery Type | Lithium/Lead-acid | |
Inverter Output | ||
Rated Power | 6000VA/6000W | |
Parallel Capability | Yes, 6 units maximum | |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
Surge Power | 12000VA | |
Efficiency (Peak) | 93% | |
Waveform | Pure sine wave | |
Transfer Time | 10ms typical,20ms Max | |
Solar Charger | ||
Maximum PV Array Power | 8000W | |
MPPT Range @ Operating Voltage | 120VDC ~ 450VDC | |
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 2/1 | |
Max. input current per MPP tracker | 16A | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Solar Charge Current | 100A | |
AC Charger | ||
Charge Current | 80A | |
AC Input Voltage | 230VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
Frequency Range | 50Hz/60Hz (Auto sensing) | |
Physical | ||
Protection Degree | IP20 | |
Dimension (W/H/D) | 460/395/132mm | |
Net Weight (kgs) | 13.5 | |
Operating Environment | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Altitude | <2000m | |
Operating Temperature | 0°C - 55°C | |
Storage Temperature | -15°C - 60°C | |
